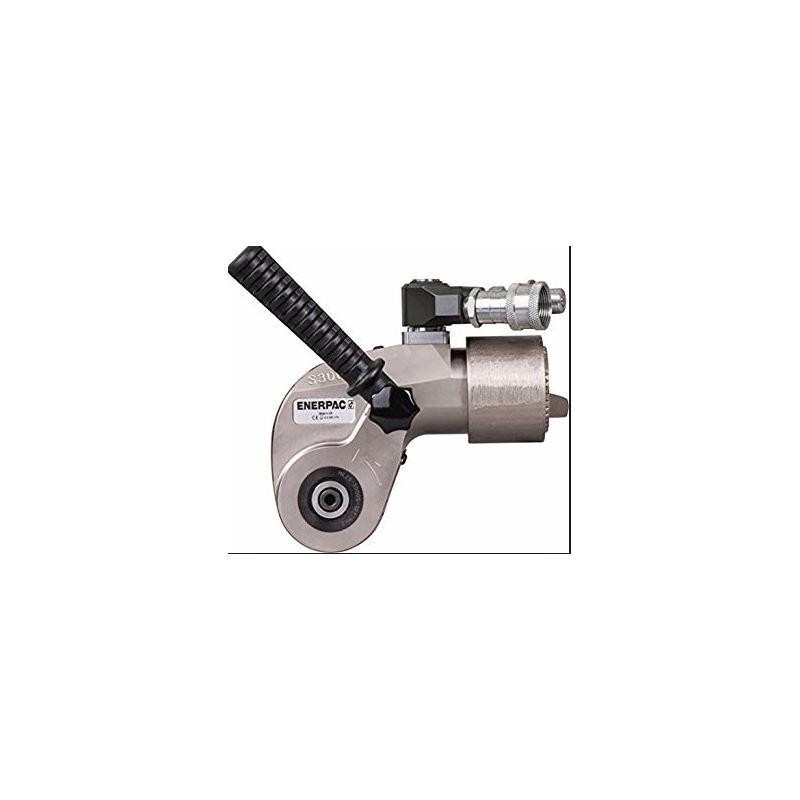

Enerpac S25000X Torque Wrench

The Enerpac S1500X is a 2,1/2” Square drive hydraulic torque wrench with a minimum torque @69bar of 3545Nm (2615Ft/Lbs) and a nominal maximum torque @690bar of 35,455Nm (26,150ft/Lbs).

All X Edition torque tools are CE –ATEX declared and are shipped complete with calibration certificates.

Safety and performance:-

Compact, high strength uni body construction provides a small operating radius without sacrificing endurance.

35 degree rotation angle and rapid return stroke for fast operation.

Tough manifold design with added safety feature for enhanced operator safety.

Simplicity:-

360 degree click on reaction arm with quick release lever provides easier handling, even with gloves on.

Includes robust handle which mounts on both sides of the tool for extra maneuverability.

Push button square drive release for quickly reversing the square drive for tightening or loosening.

Versatility:-

Available with optional tilt and swivel TSP300 manifold for horizontal and vertical maneuverability, with greater durability.

Accuracy:-

Constant torque output provides accuracy of +/- 3% across full stroke.

Optional Angle – of – Turn indicator provides measurement of rotation.
