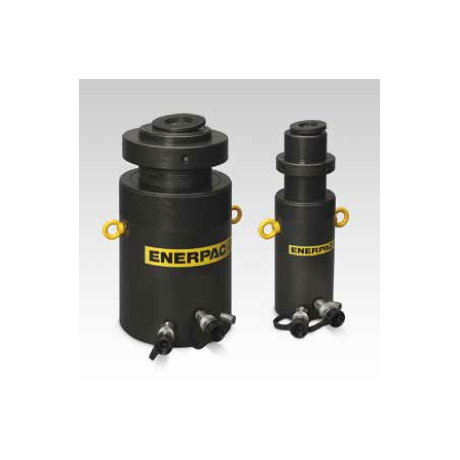

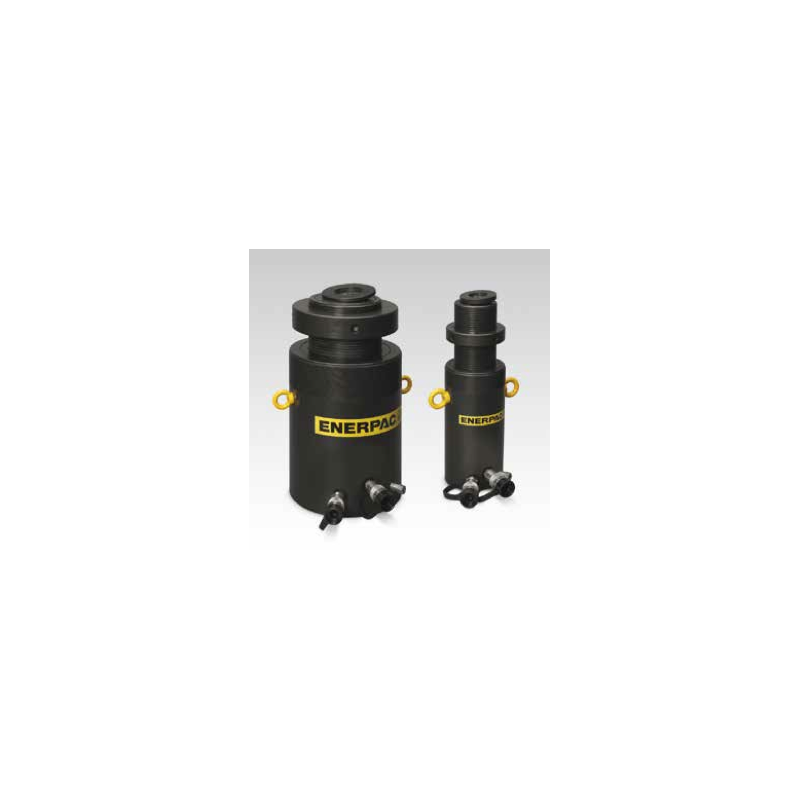

Enerpac HCRL1006 Double acting lock ring cylinder
HCRL1006 Enerpac cylinder
New product
The Enerpac HCRL1006 double acting lock ring cylinder has a capacity of 100t, a closed height of 346mm, an outside diameter of 185mm and a 150mm stroke.
Supplied complete with test certificate traceable to national standards.
More info
The Enerpac HCRL1006 double acting lock ring cylinder has a capacity of 100t, a closed height of 346mm, an outside diameter of 185mm and a 150mm stroke.
- Hydraulically controlled fast retraction
- Lock nut provides mechanical load holding for a safe work environment
- Designed to withstand up to 10% side-load of maximum capacity
- Integrated tilt saddle allows up to 5 degrees of misalignment
- Hardened surface resists side-loading and cyclic wear
- Weather protected, inside and out
- Replaceable bearings enclose the plunger external and internally for support
- Certified lifting eyes, base mounting holes and collar thread as standard
- Stop-ring to prevent plunger blow-out
- Low friction lock nut, to spin easily, save time and effort.
Supplied complete with test certificate traceable to national standards.
