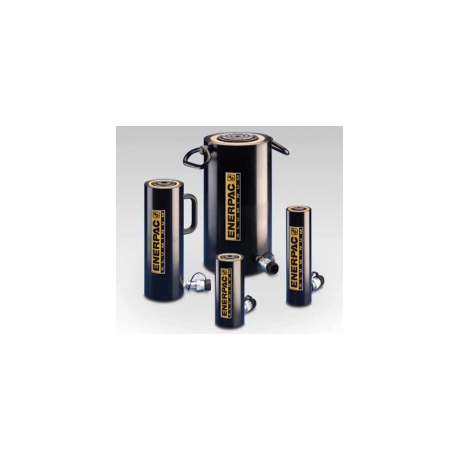

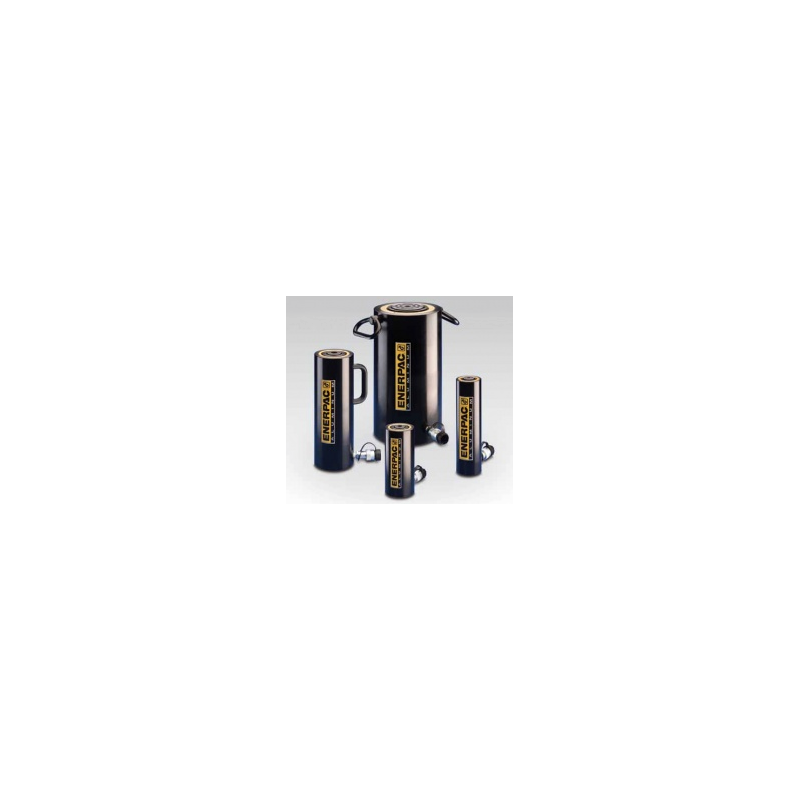

Enerpac RAC302 Aluminium Cylinder
RAC302 Enerpac Cylinder
New product
The Enerpac RAC302 has a capacity of 30t, a closed height of 181mm,an outside diameter of 100mm,a stroke of 50mm and weighs only 4.5Kgs.
Supplied complete with test certificate traceable to national standards.
More info
The Enerpac RAC302 has a capacity of 30t, a closed height of 181mm, an outside diameter of 100mm,a stroke of 50mm and weighs only 4.5Kgs.
Enerpac single acting aluminum hydraulic cylinders are lightweight by design to provide maximum portability.
Composite bearings prevent metal to metal contact, increasing cylinder life and resistance to side-loads of up to 10%
Hard-Coat finish on all surfaces resists damage and extends cylinder life
Handles are standard on all aluminum cylinder models
Steel base plate and saddle for protection against load induced damage
Integral stop ring prevents plunger over-travel and is capable of withstanding the full cylinder capacity
High strength return spring for rapid cylinder retraction
CR-400 coupler and dustcap included on all models
All aluminum cylinders meet ASME B-30.1 and ISO 10100 standards
Supplied complete with test certificate traceable to national standards.
