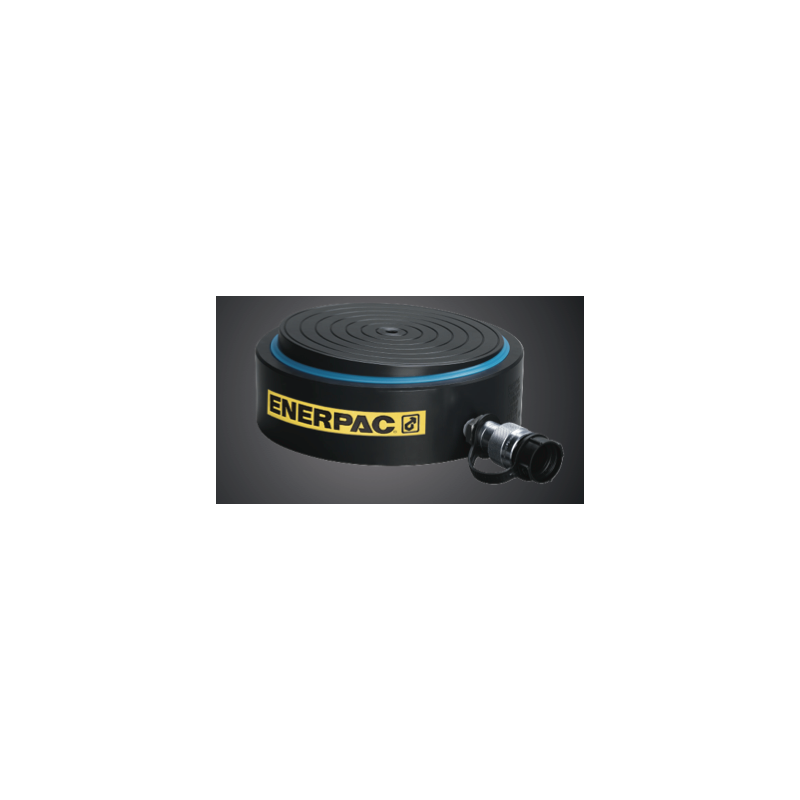

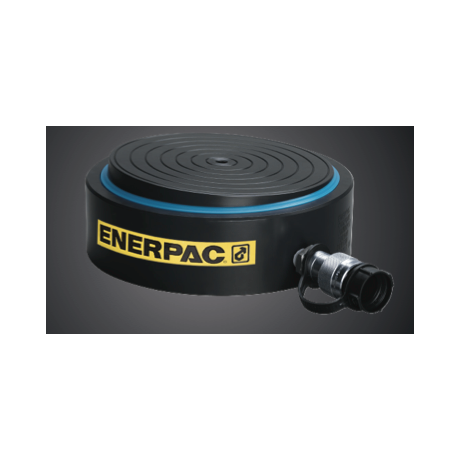

Enerpac CUSP50 Ultra Flat Cylinder
CUSP50 Cylinder
New product
The CUSP50 cylinder from Enerpac's new range of ultra flat cylinders produces 539kN of force @ 700 bar maximum working pressure. The cylinder has a collapsed height of 58mm and a 10mm stroke.
Supplied complete with test certificate traceable to national standards.
More info
The CUSP59 cylinder from Enerpac's new range of ultra flat cylinders produces 539kN of force @ 700 bar maximum working pressure. The cylinder has a collapsed height of 58mm a 10mm stroke and a tilting capability of +/- 4 degrees.
The CUSP range have the following features:-
Up to 4% side load of maximum capacity.
Extremely low collapsed height.
Integrated tilting function of between 2 and 4 degrees dependent on model chosen.
Nitro - Carbonized surface treatment for harsh conditions.
Red line to indicate maximum stroke.
Supplied complete with test certificate traceable to national standards.
PLEAS NOTE THE CUSP RANGE GOES FROM 97kN CAPACITY TO 10169kN CAPACITY WITH 1589,2099,2542,3168,4009,5116,5989,7529 & 10169kN MODELS BEING PRICED ON APPLICATION ONLY - FOR DETAILS PLEASE CONTACT US DIRECTLY.
