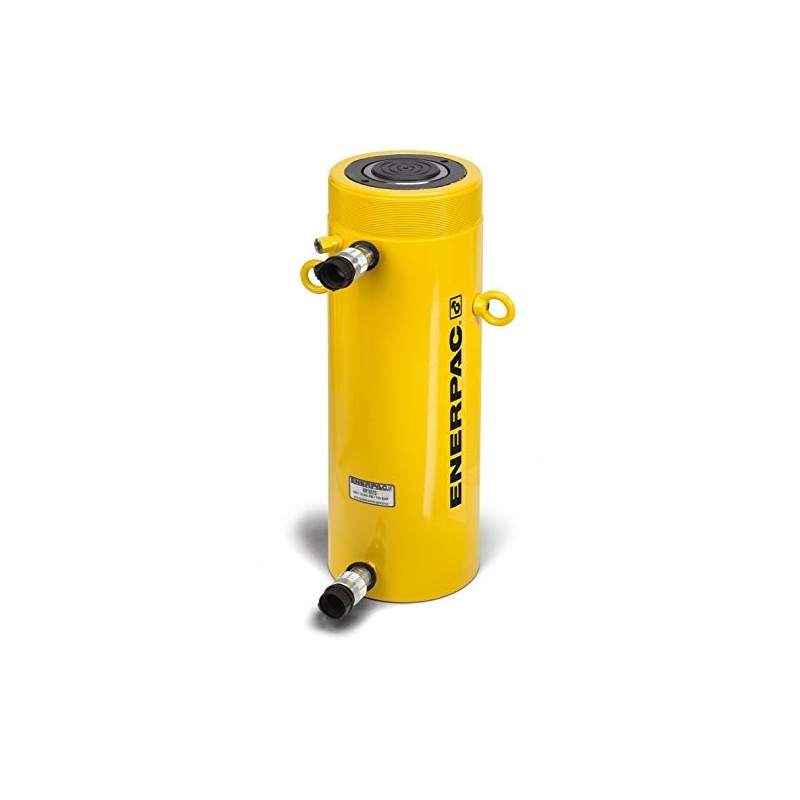

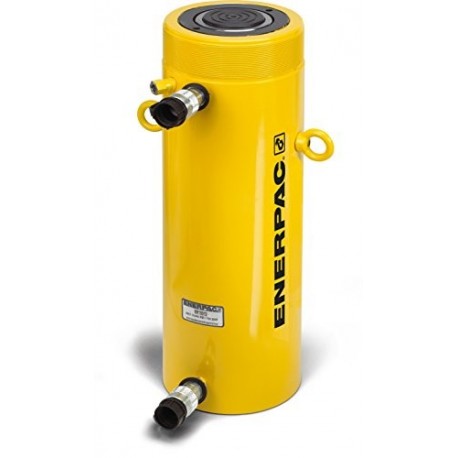

Enerpac RR10013 Hydraulic cylinder
RR10013 Hydraulic cylinder
New product
Double acting cylinder from the Enerpac RR range with 933kN pushing / lifting capacity, 435kN pulling force with 333mm stroke. The RR10013 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 4439cm3 on the push side and 2071cm3 on the pull side. Supplied complete with test certificate traceable to national standards.
More info
Double acting cylinder acting cylinder from the Enerpac RR range with 933kN pushing / lifting capacity and 435kN pulling force with 333mm stroke. The RR10013 has a closed height of 357mm and a diameter of 177mm. The RR10013 has a collar thread of 6,7/8” - 12 and an internal plunger thread of 1, 1/4” – 12 to facilitate easy mounting and adaption for pulling applications.
The RR range of cylinders have a built in safety valve to prevent over pressurization and plunger wiper seals to reduce the chance of contamination, therefore prolonging cylinder life. Supplied complete with test certificate traceable to national standards.
