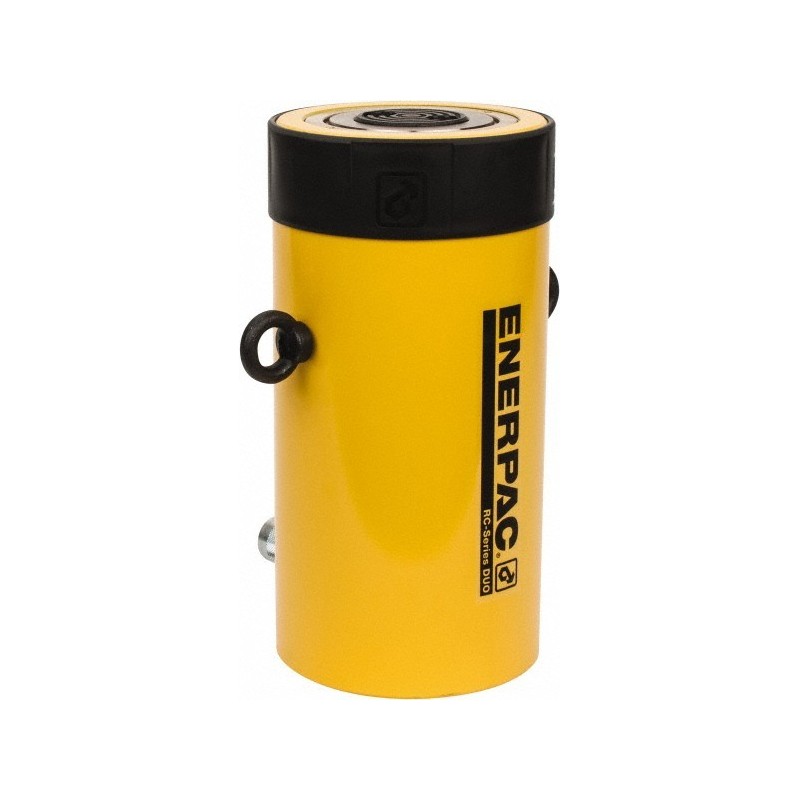

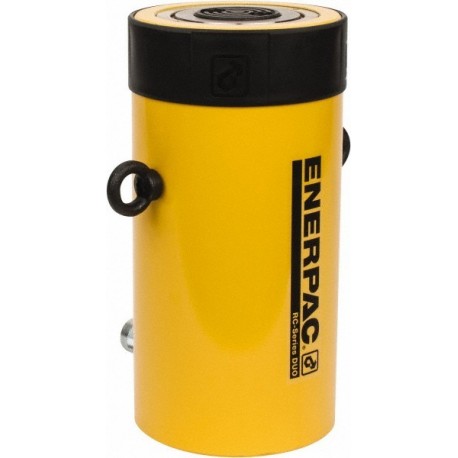

Enerpac RC1006 Hydraulic cylinder
RC1006 Hydraulic cylinder
New product
General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 933kN lifting capacity and 168mm stroke. The RC1006 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 2239cm3. Supplied complete with test certificate traceable to national standards.
More info
General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 933kN lifting capacity and 168mm stroke. The RC1006 has a closed height of 449mm and a diameter of 177mm, a collar thread of 6,7/8” - 12 UN and two base mounting holes of 3/4” – 10 UN. The “Duo” range of cylinders has improved saddle retention, thread protectors fitted to the collar threads as standard, heavy duty return springs and the unique GR2 bearing system. The GR2 bearing system absorbs eccentric load stress to protect the cylinder against abrasion, over – extending or plunger blow outs and jamming or top – end mushrooming. This ensures that the “ Duo” range will provide long trouble free operation. Supplied complete with test certificate traceable to national standards.
