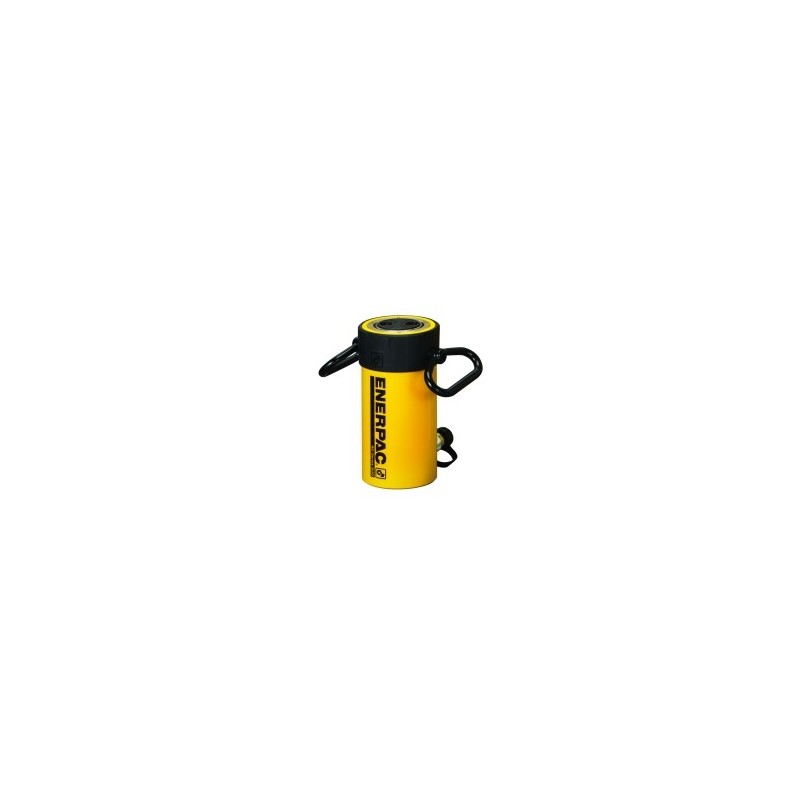

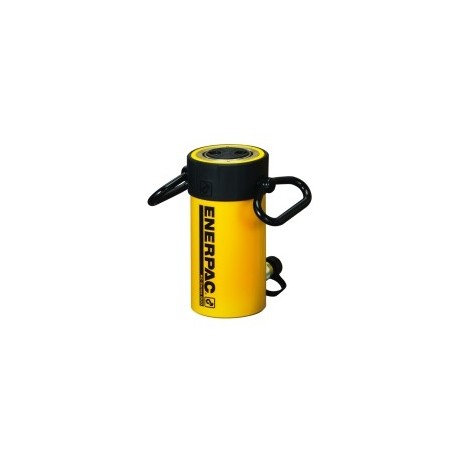

Enerpac RC506 Hydraulic cylinder
RC506 Hydraulic cylinder
New product
General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 498kN lifting capacity and 159mm stroke. The RC506 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 1131cm3. Supplied complete with test certificate traceable to national standards.
More info
General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 498kN lifting capacity and 159mm stroke. The RC506 has a closed height of 282mm and a diameter of 127mm, a collar thread of 5” - 12 UN and two base mounting holes of 1/2” – 13 UN. The “Duo” range of cylinders has improved saddle retention, thread protectors fitted to the collar threads as standard, heavy duty return springs and the unique GR2 bearing system. The GR2 bearing system absorbs eccentric load stress to protect the cylinder against abrasion, over – extending or plunger blow outs and jamming or top – end mushrooming. This ensures that the “ Duo” range will provide long trouble free operation. Supplied complete with test certificate traceable to national standards.
