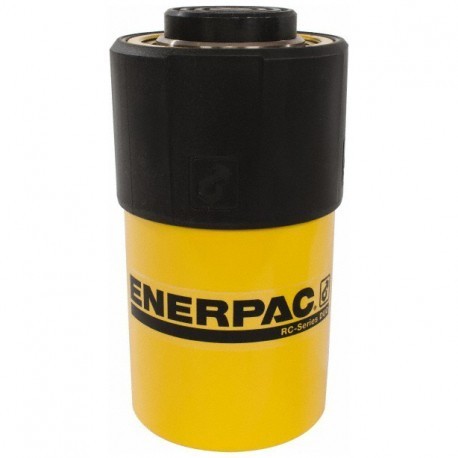

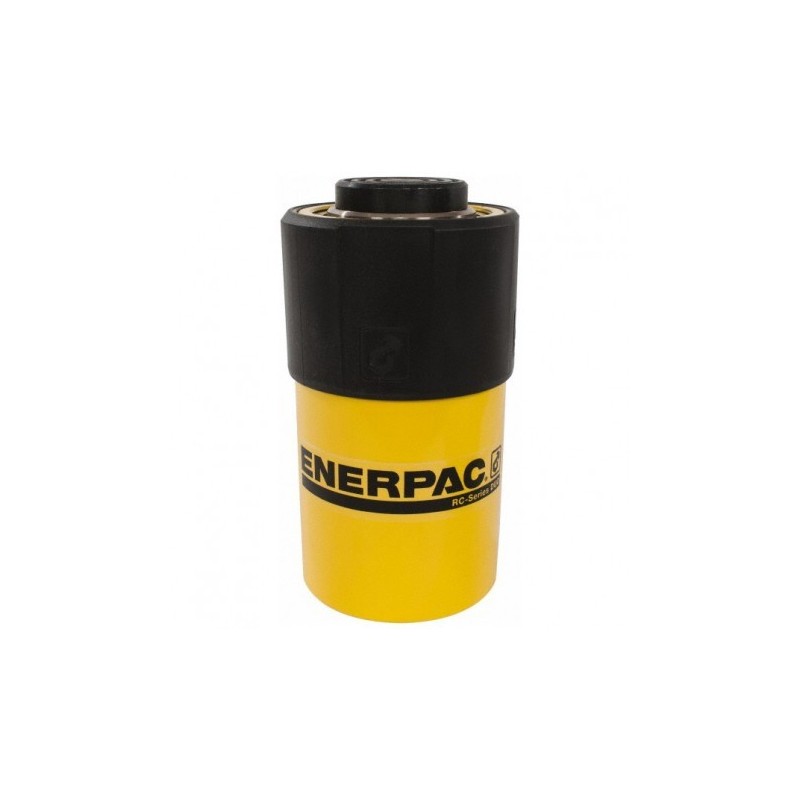

Enerpac RC254 Hydraulic cylinder

RC254 Hydraulic cylinder

New product

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 232kN lifting capacity and 102mm stroke. The RC252 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 339cm3. Supplied complete with test certificate traceable to national standards.



More details

Add to wishlist

More info

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 232kN lifting capacity and 102mm stroke. The RC252 has a closed height of 215mm and a diameter of 85mm, a collar thread of 3,5/16” - 12 UN and two base mounting holes of 1/2” – 13 UN. The “Duo” range of cylinders has improved saddle retention, thread protectors fitted to the collar threads as standard, heavy duty return springs and the unique GR2 bearing system. The GR2 bearing system absorbs eccentric load stress to protect the cylinder against abrasion, over – extending or plunger blow outs and jamming or top – end mushrooming. This ensures that the “ Duo” range will provide long trouble free operation. Supplied complete with test certificate traceable to national standards.



Reviews

No customer reviews for the moment.

Write a review

Enerpac RC254 Hydraulic cylinder

Enerpac RC254 Hydraulic cylinder

General purpose, spring assisted return, single acting cylinder from the Enerpac “Duo” range with 232kN lifting capacity and 102mm stroke. The RC252 has a working pressure of 700 bar (10,000 psi) and an oil capacity of 339cm3. Supplied complete with test certificate traceable to national standards.
